Specifications
Engine

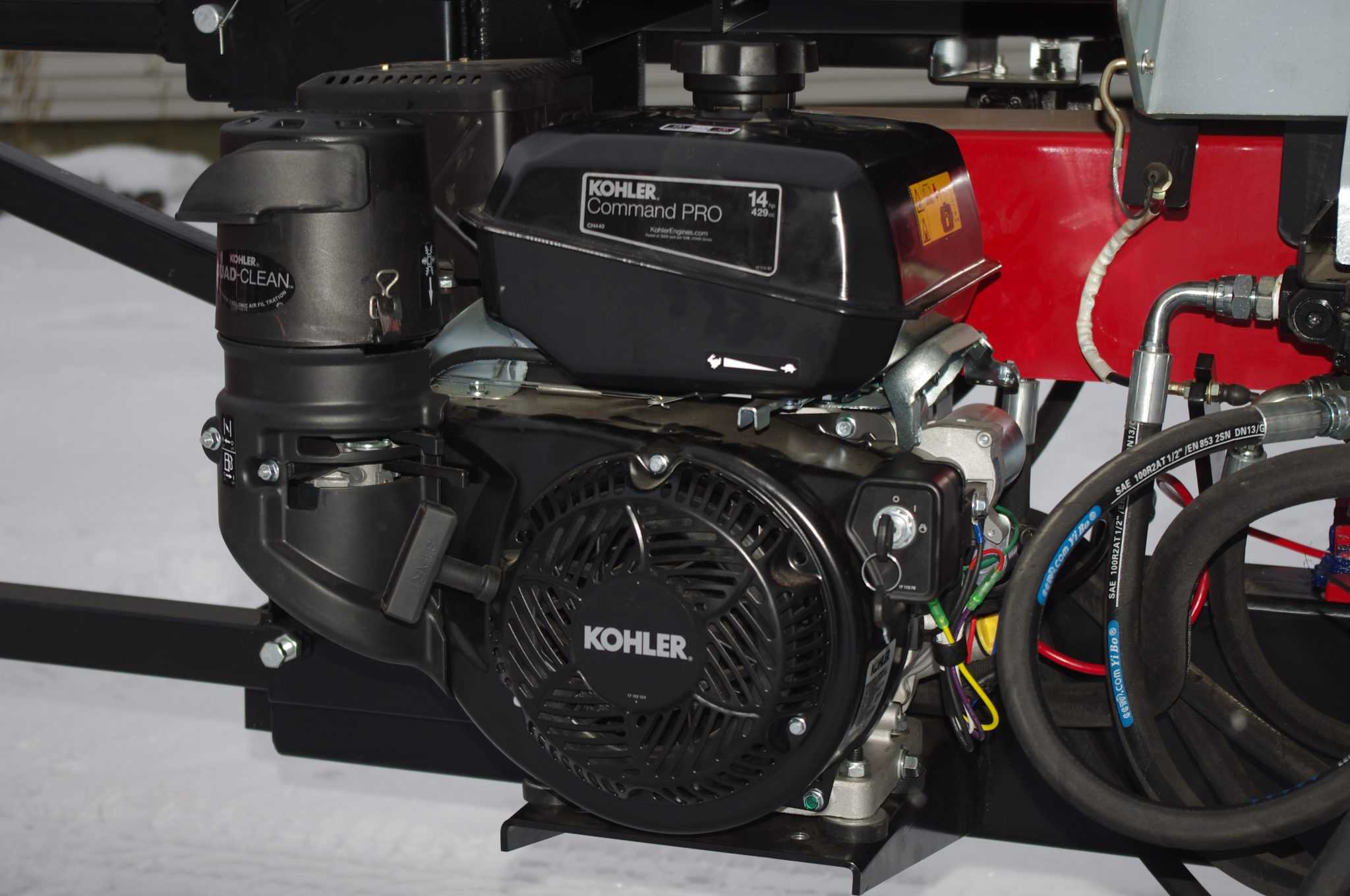

- Kohler Command PRO CH440 14 HP
- Electric start
- Air cooled 4 stroke with inclined single cylinder gasoline engine
- Quad-Clean filter for extreme conditions
- Hot air recycling system for winter conditions
Saw section

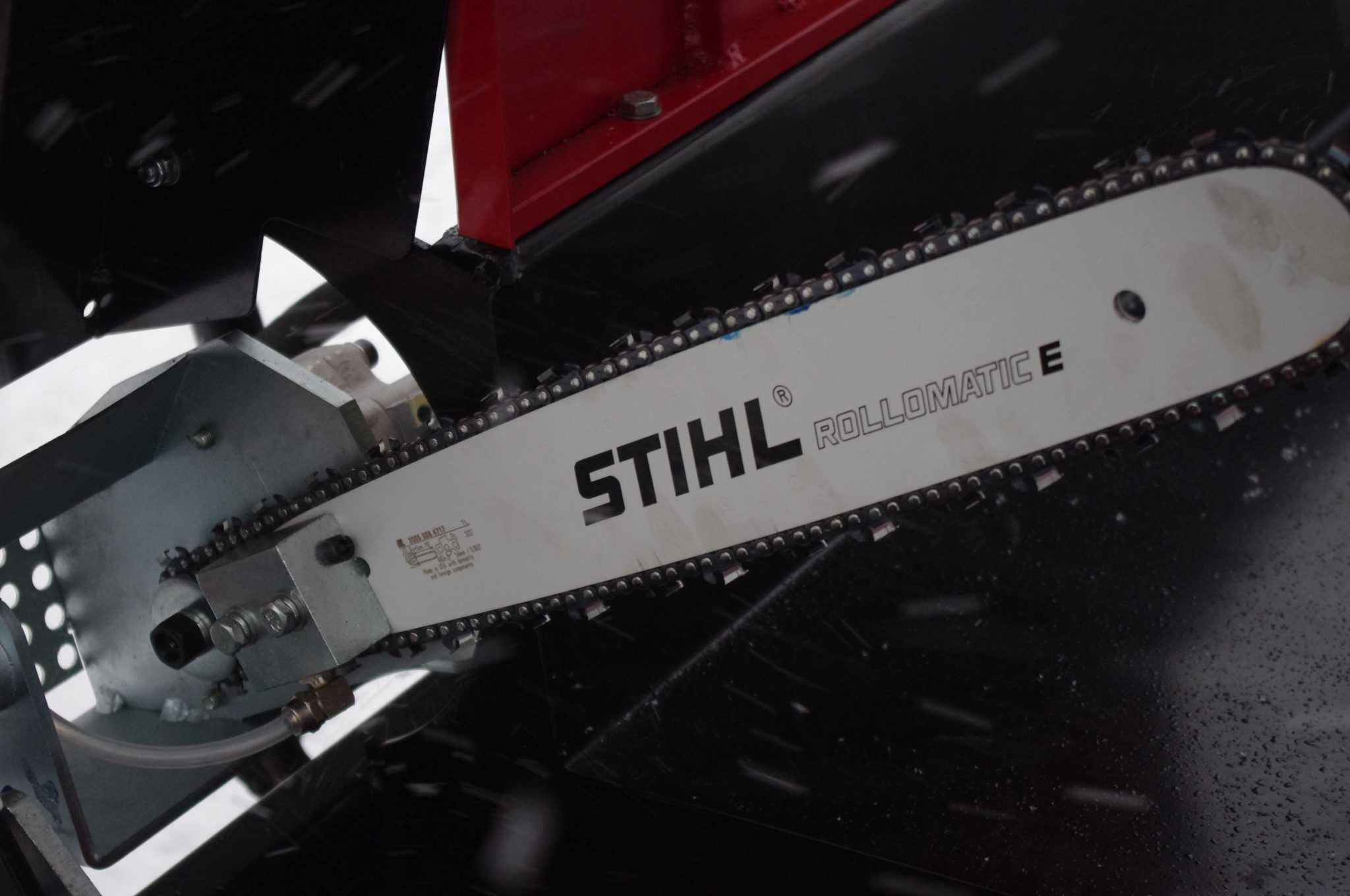

- Original 18-inch STIHL blade (16-inch cutting capacity)
- Original 325 STIHL chain
- Manual saw lowering system
- Continuous chain lubrication system with visible indicator and large capacity tank. A simple valve to open or close, efficient and reliable

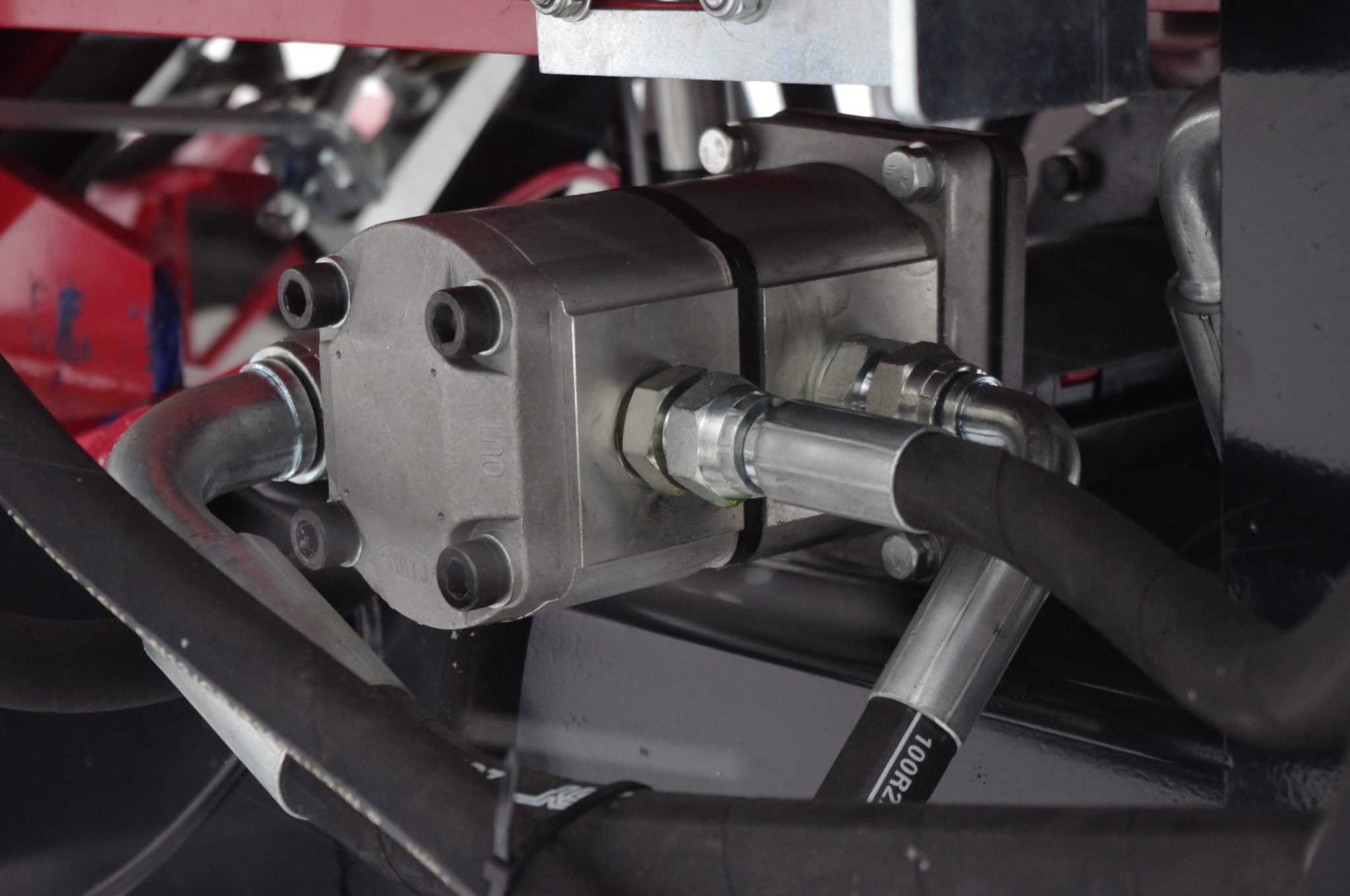

- Superior quality hydraulic saw motor allowing a powerful cutting speed of 6000 rpm
- Openable saw cover, allowing easy access to the splitter
- Saw cover safety switch. If the cover is open, the saw stops immediately
- Includes an easy-to-read ruler to measure the desired lengths of cuts for the last log, possible to cut logs between 10 and 22 inches long
Splitting section

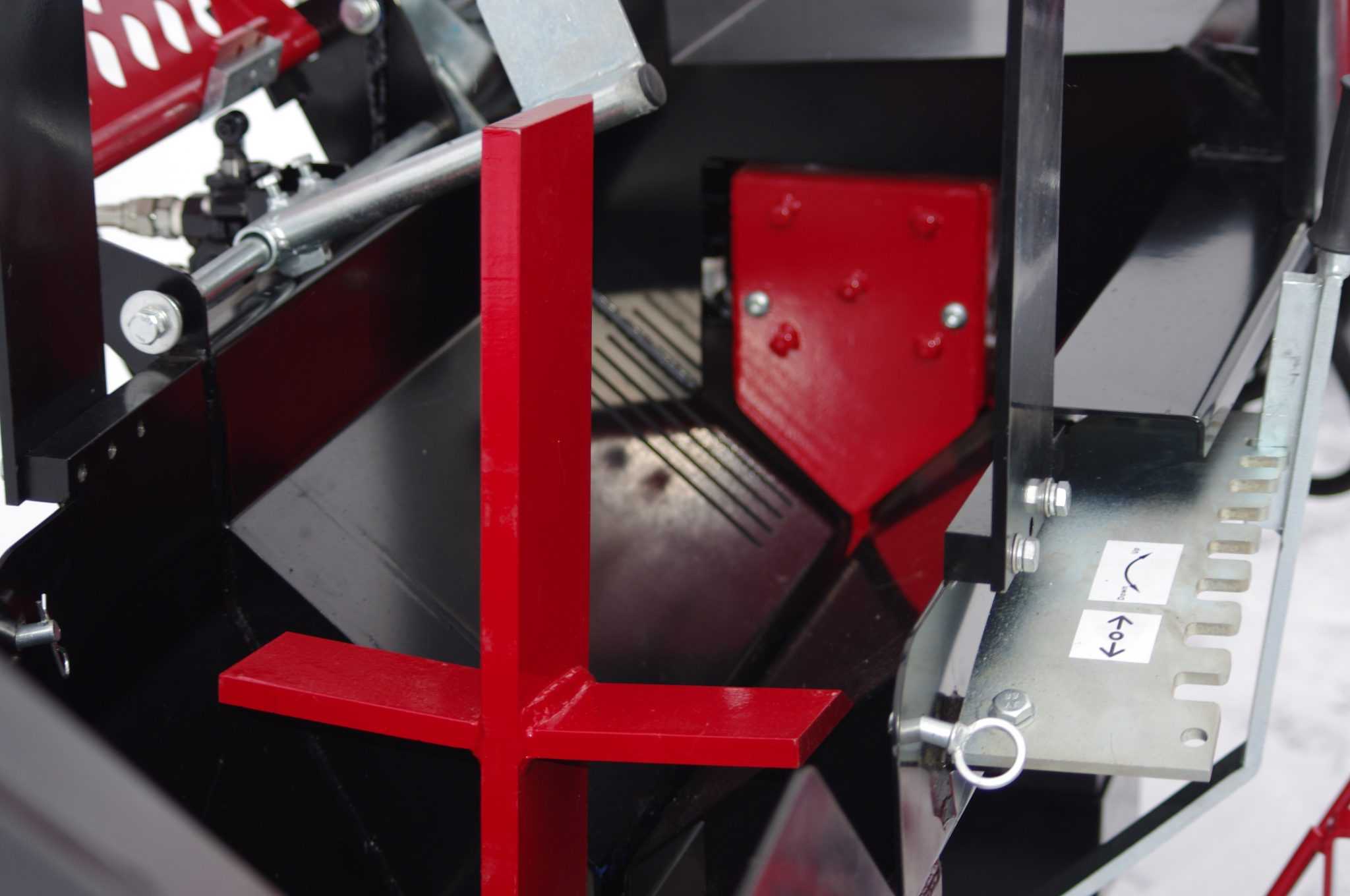

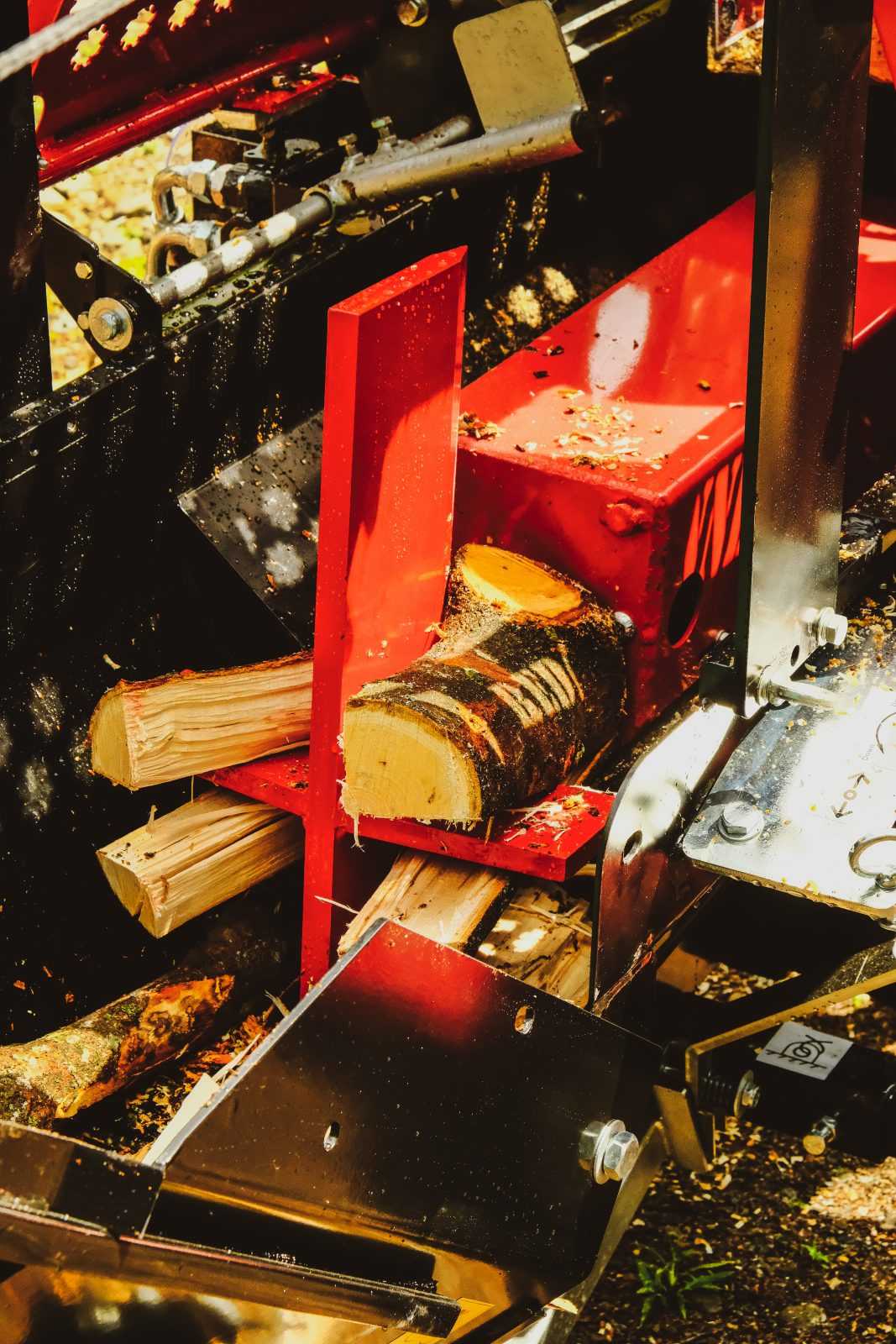

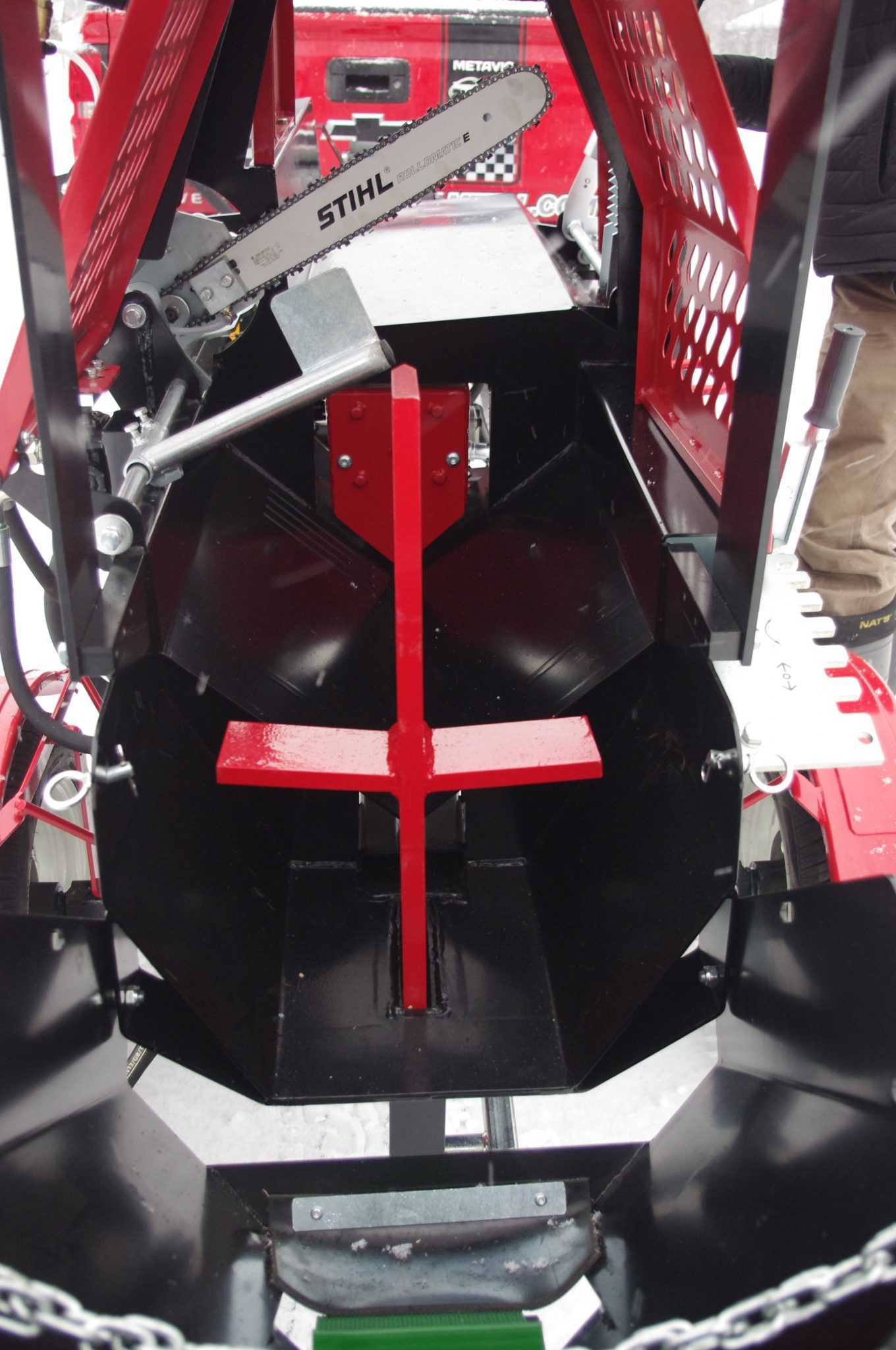

- 4-way splitting blade included (6-way available in option)
- Splitting power of 27 tons nominal
- Quick return of the splitter’s cylinder
- Adjustable oil flow system
- Oversized screen oil filter, easy to clean and environmentally friendly, allowing high precision filtration
- Filter indicator, it will tell you when it’s time to clean it
- Easy and very safe splitter activator. It is as easy to initiate as it is to stop. In addition, it stops automatically when the saw cover is opened
infeed table section
- Maximum length of 10 feet long logs at the input, can be increased to 16 feet with the addition of a feeding table in option
exit conveyor section
- Conveyor length of 10.5 feet, foldable for easy transportation and storage
- 10-inch wide conveyor belt
- 1200 lb winch for conveyor height adjustment
- Heavy-Duty winch rope
Towing section
- 2-inch towing drawbar
- 3500-lb safety chains
Specially for you
- Reinforced hydraulic system to prevent the overheating of the hydraulic oil
- 1 adjustable jack with a swivel wheel to increase the stability and movement of your firewood processor
- Hydraulic power output double valve
- Emergency stop button
- Hour meter to easily follow your maintenance schedule
- Toolbox
